Slurry Seal is a cold mix blend of high quality crushed aggregates, asphalt emulsion, water and mineral fillers, mixed together according to a predetermined mix design from a laboratory.

It is applied to an existing surface, such as surface treatment or pavements, that are still in fair to good condition, as a means of a cost effective preventative maintenance. It reduces deterioration by sealing, prevents further oxidization, corrects raveling and provides or replaces a high degree of skid resistance.

Slurry Seal is applied with a spreader box, which is connected to the slurry mixing unit, as shown on the right. The box is the width of a single lane, allowing a uniform spread of material in a single pass.

Crews ahead of the unit set up traffic control, and sweep the surface before applying the slurry seal. Operators of the units monitor the mixing and application. After a short curing time traffic will be allowed to resume use of the freshly rehabilitated lane.

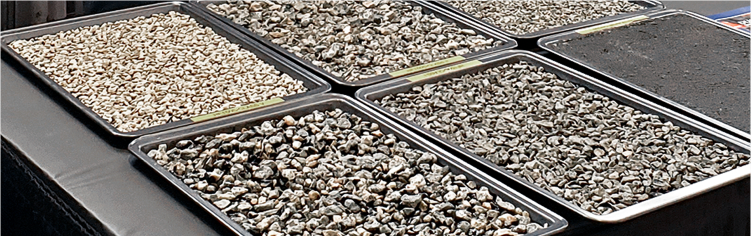

Slurry Seal - Aggregates

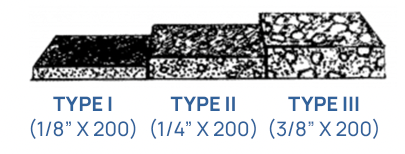

Aggregate Gradation

Slurry Seal - aggregate gradation

There are three types of Slurry seal commonly used, each using a different size of aggregate;

It is applied to an existing surface, such as surface treatment or pavements, that are still in fair to good condition, as a means of a cost effective preventative maintenance. It reduces deterioration by sealing, prevents further oxidization, corrects raveling and provides or replaces a high degree of skid resistance.

Slurry Seal is applied with a spreader box, which is connected to the slurry mixing unit, as shown above. The box is the width of a single lane, allowing a uniform spread of material in a single pass.

Crews ahead of the unit set up traffic control, and sweep the surface before applying the slurry seal. Operators of the units monitor the mixing and application. After a short curing time traffic will be allowed to resume use of the freshly rehabilitated lane.

Type I

Slurry Seal

(Fine Aggregate, 1/8” max)

Used For Lower Traffic Volumes and Maximum Crack Penetration.

Recommended Application Rates Are: 4.3-6.5 kg/m²

Type II

Slurry Seal

(General Aggregate, 1/4” max)

Most Commonly Used Slurry. Good For Moderate to High Volume Roads.

Recommended Application Rates Are: 6.5-10.8 kg/m²

Type III

Slurry Seal

(Coarse Aggregate , 3/8”)

Used for High Volume Roads and Heavier Traffic.

Recommended Application Rates Are: 9.8- 16.3 kg/m²

For further information on how to make Slurry Seal part of your preventative maintenance program, or which type best suit your needs, Contact Us Today, and protect your paving investments.
